TWO MACHINES IN ONE. A REVOLUTION IN CABLE BLOWING.
A fully electric machine for micro and mini cables with a unique gearbox: powerful with larger cables in first gear delivering 90 lbf (400 N) and 197 ft/min (60 m/min), and extremely sensitive with smaller cables in second gear delivering 22.5 lbf (100 N) and 394 (120 m/min), with an advanced cable protection system.
TWO MACHINES IN ONE
Thanks to its MAGNETIC GEAR SYSTEM and fully electric drive system, Geniale combines maximum pushing force for large cables with exceptional sensitivity for smaller ones.
GEAR 1
POWER AND DISTANCE
90 lbf
197 ft/min
Up to 90 lbf of continuous pushing force, delivering unprecedented power.
Best for minicables from 4 mm to 8 mm.
GEAR 2
PRECISION AND SAFETY
22.5 N
394 ft/min
Up to 22.5 lbf of continuous pushing force, with unique sensitivity to safely install small cables without risk of damage
Best for microcables from 1.2 mm to 3 mm.
: the revolution in cable blowing machines.
POWER IN NUMBERS

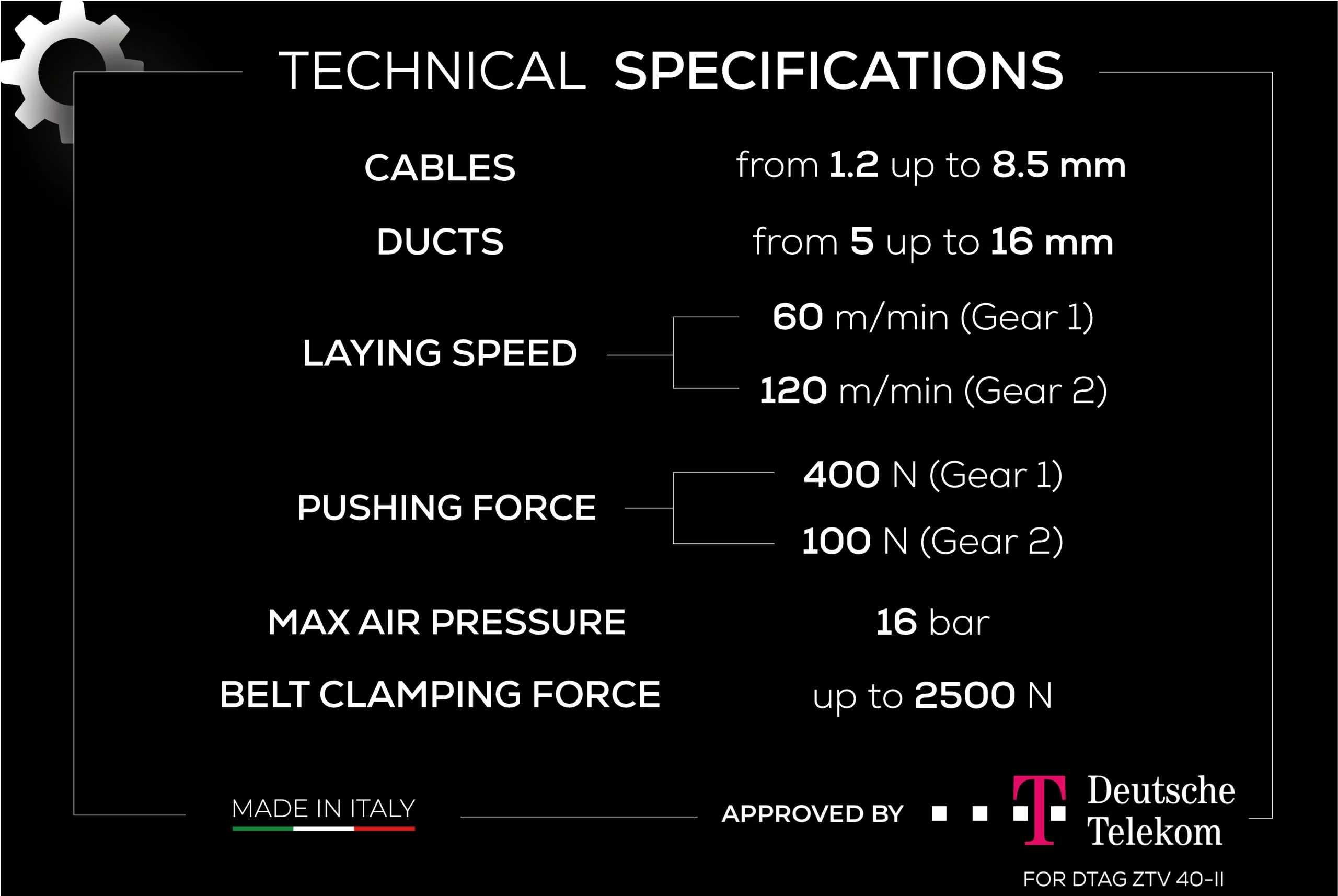

Explore GENIALE’s technical specifications and see what makes it a one-of-a-kind cable blowing machine.

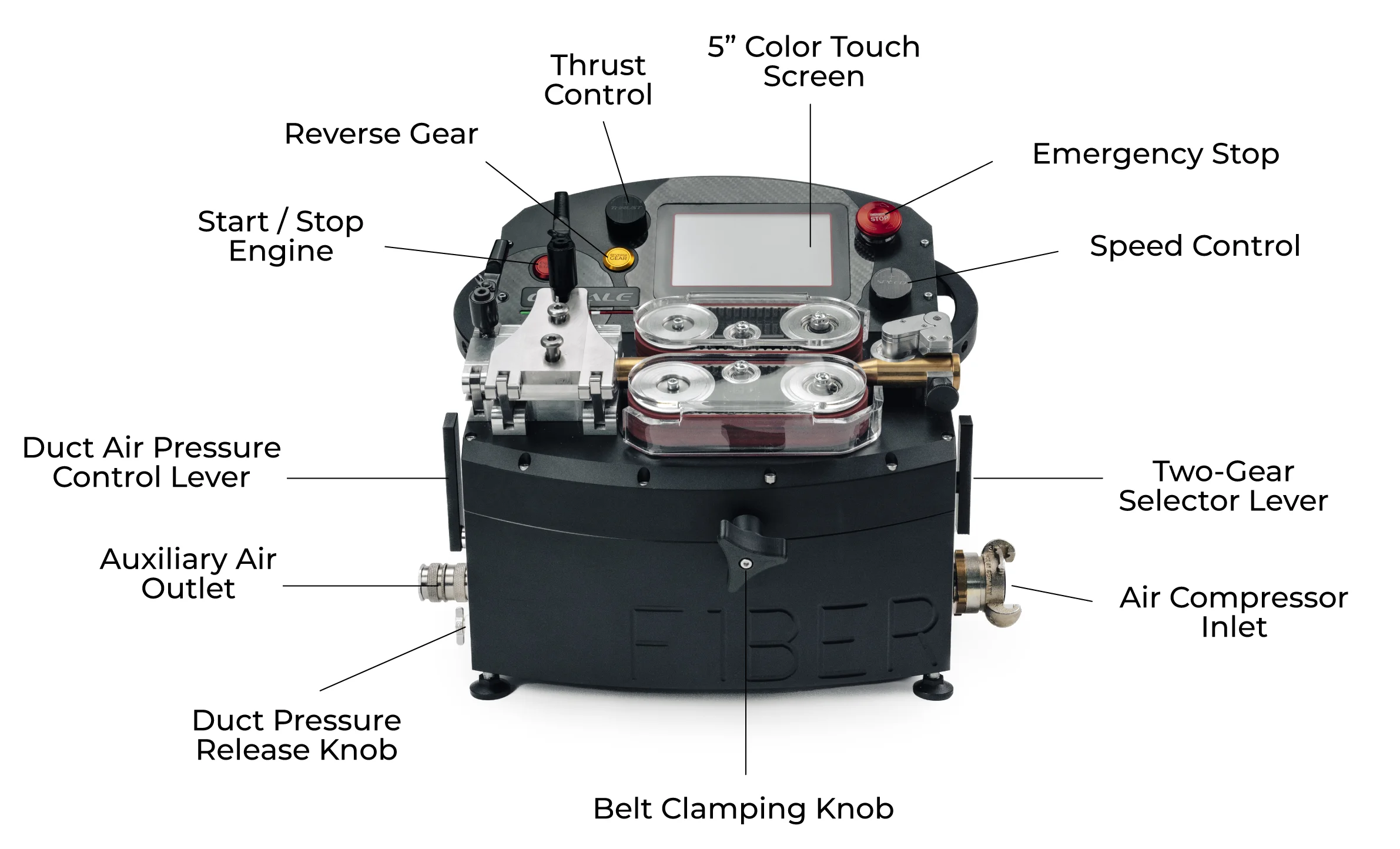

OVERVIEW
The following features highlight the key elements that make GENIALE a revolutionary machine in the fiber optics world.
ALL THE FEATURES
ALL THE FEATURES
WATCH GENIALE IN ACTION
2.4 mm cable – 7/3.5 mm duct – Gear 2 100 N
tutorial – how to use geniale
6.5 mm cable – 14/10 mm duct – Gear 1 400 N
DETAILS THAT MAKE THE DIFFERENCE

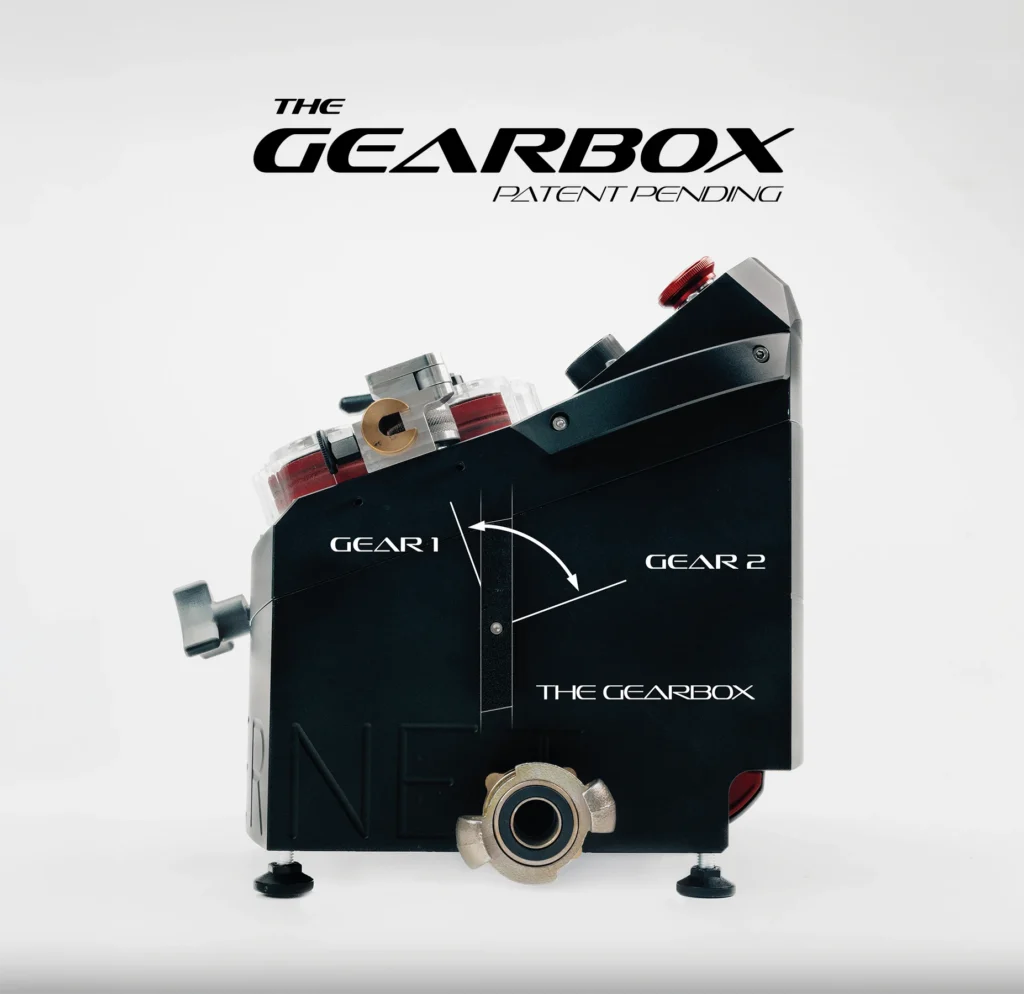

UNIQUE MAGNETIC GEARBOX
Geniale features a patent-pending magnetic gearbox, allowing operators to switch between power and sensitivity depending on the cable type. In first gear, the machine delivers 90 lbf and 197 ft/min, while in second gear it operates with 22.5 lbf and up to 394 ft/min, providing power for larger cables and sensitivity for smaller ones.
FULLY ELECTRIC SYSTEM
Fully electric. No pneumatic motors.

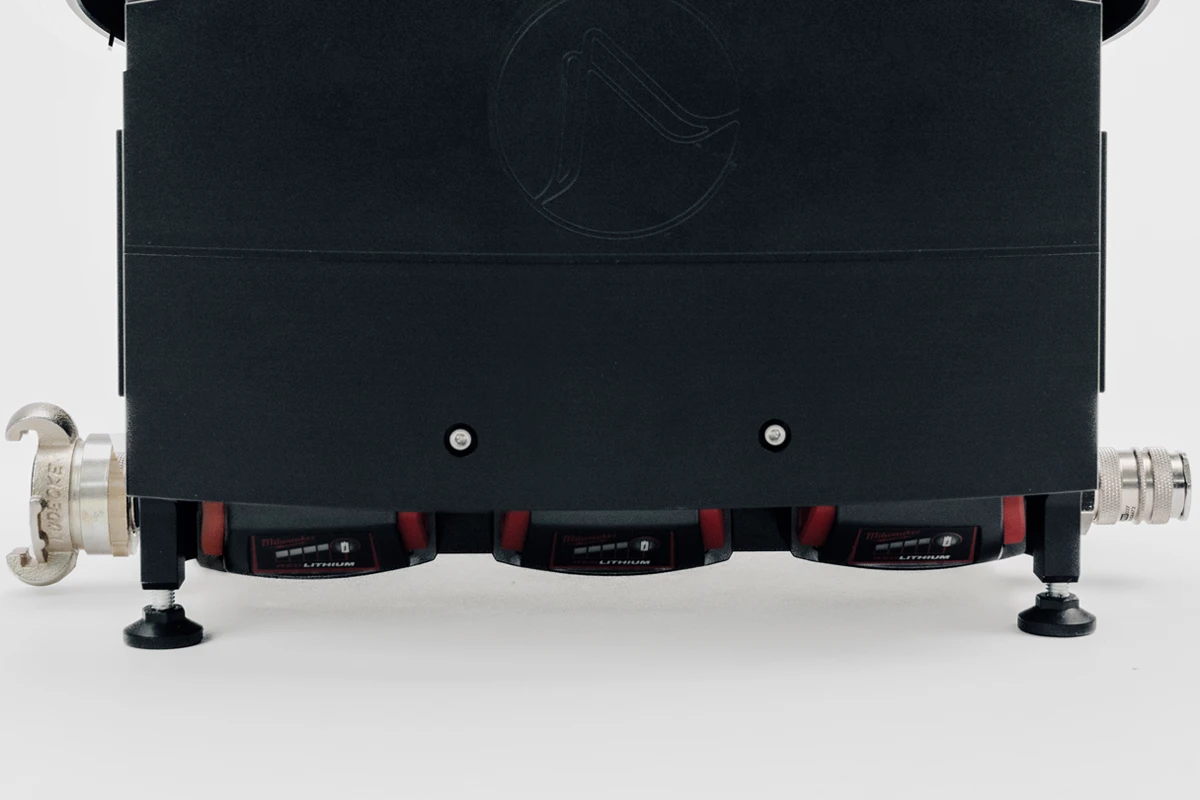

All the compressor air goes directly into the duct, maximizing performance and allowing operation even with smaller compressore. Up to 2.5 miles per charge in first gear and up to 3.7 miles in second gear with 3 x 18V 5 Ah Milwaukee batteries.

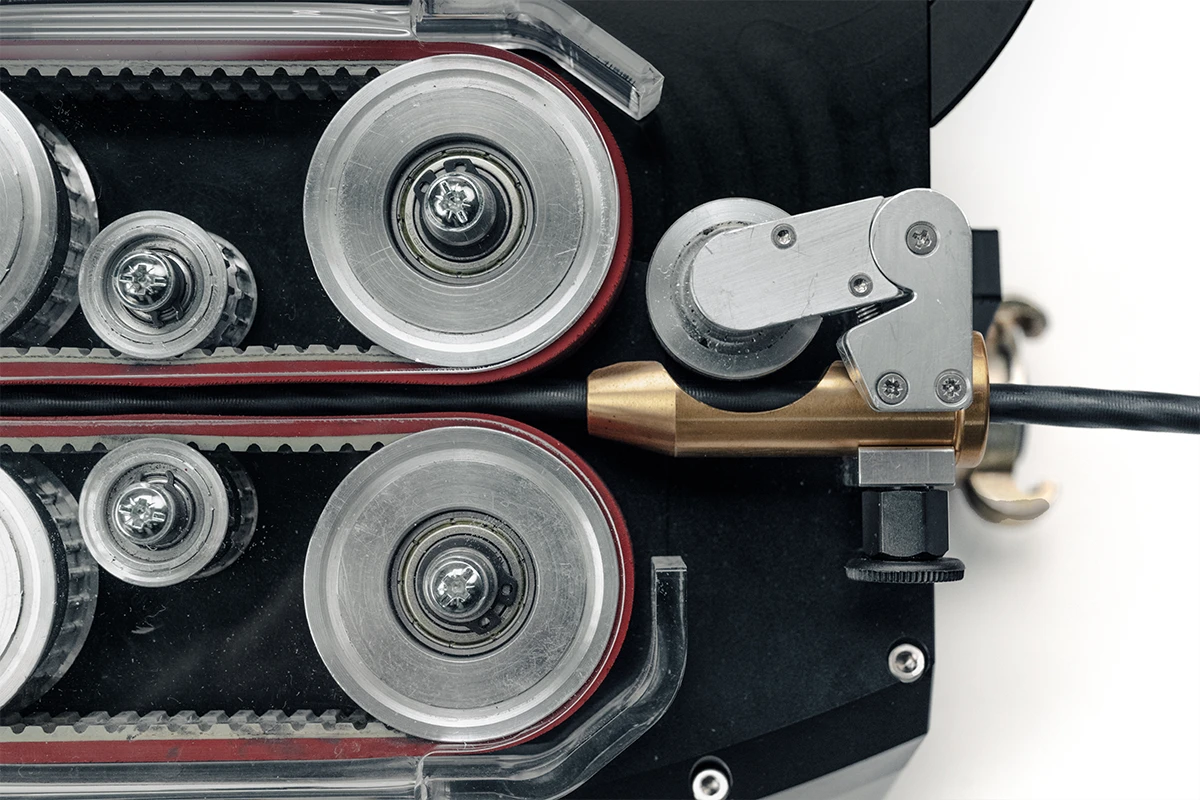

ULTIMATE CABLE PROTECTION

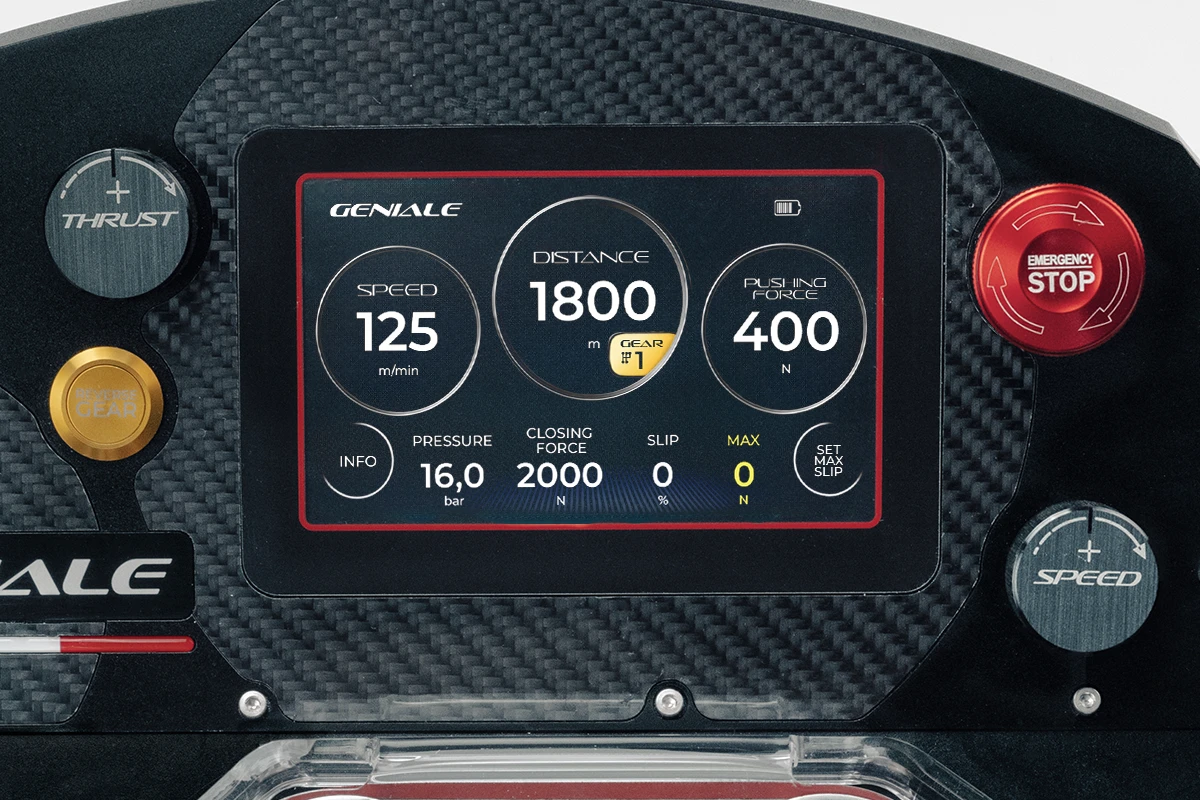

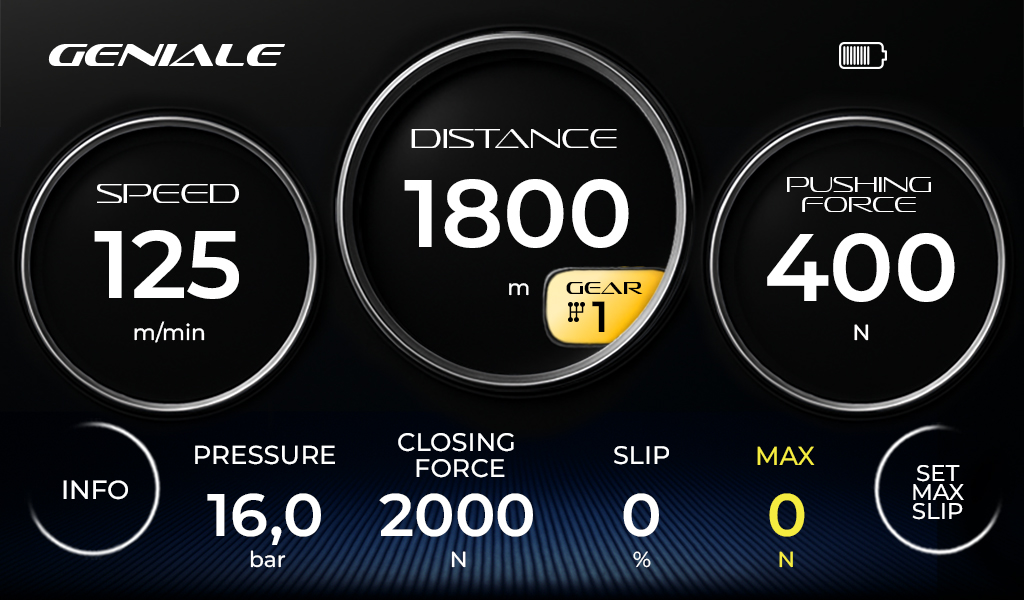

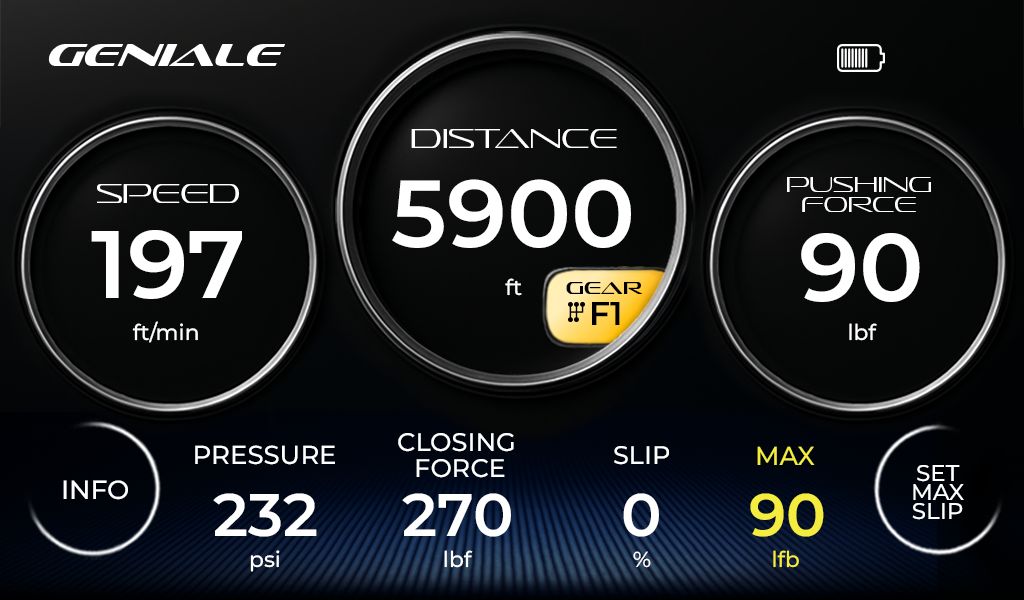

DISPLAY SHOWING ALL DATA IN REAL TIME

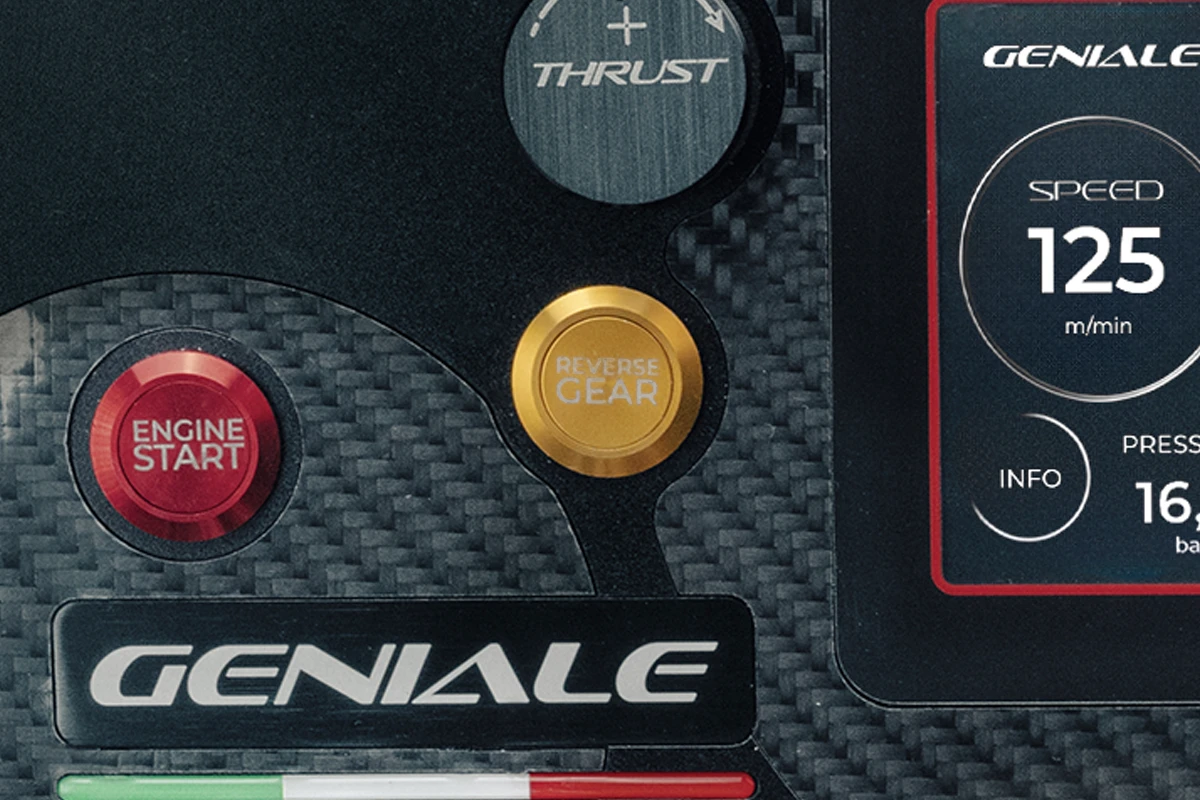

REVERSE FUNCTION
INSTALLATION REPORTING WITH FIBERNET APP
AUXILIARY AIR OUTLET
Super airtight pressure chamber

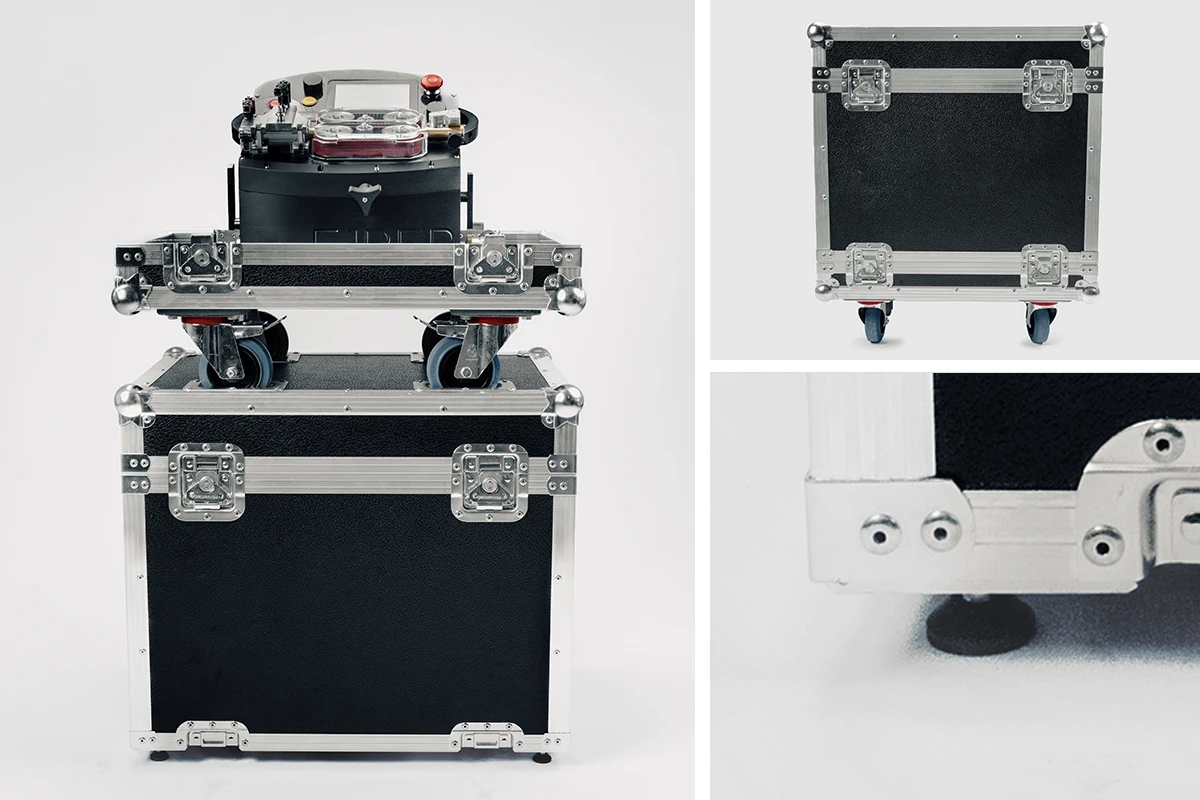

TRANSPORT CASE CONVERTIBLE INTO A WORK TABLE
HIGH-PRECISION METER COUNTER
A high-precision electronic meter counter with 4,096 pulses per revolution, ensuring extremely accurate cable length measurement in both directions, with real-time installation data displayed on the screen.

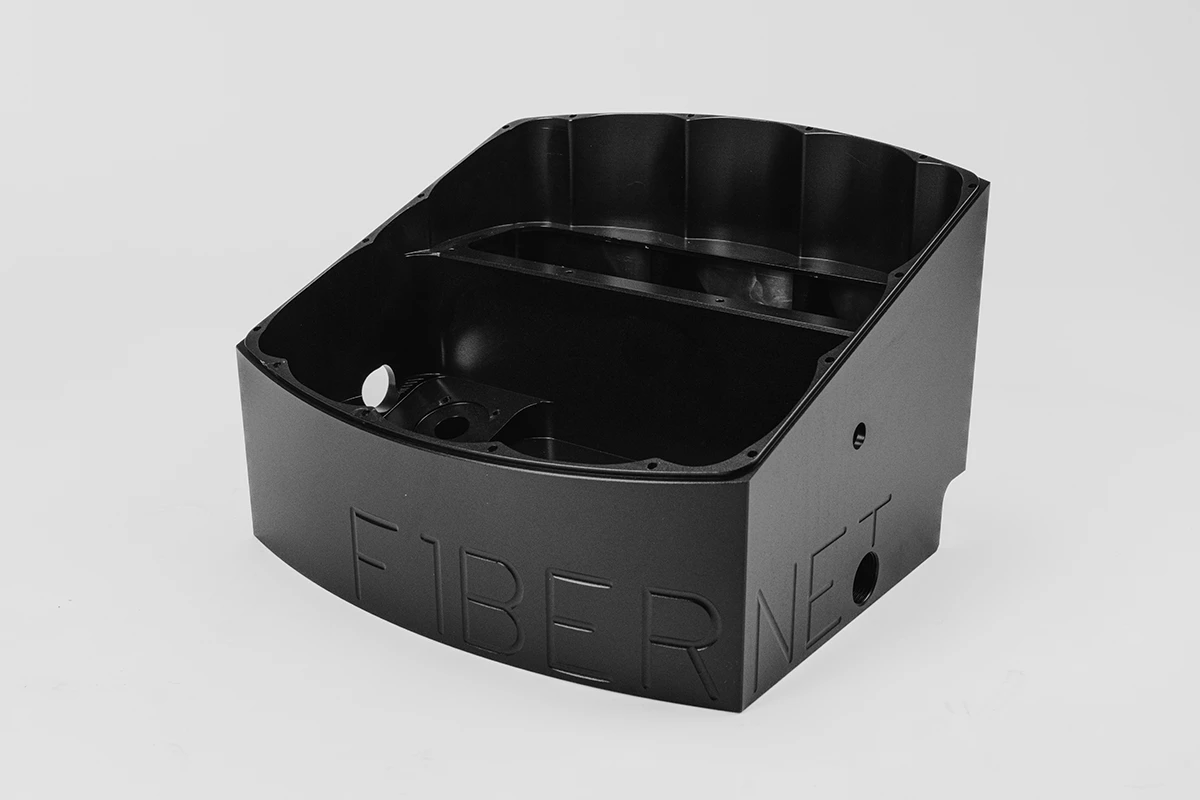

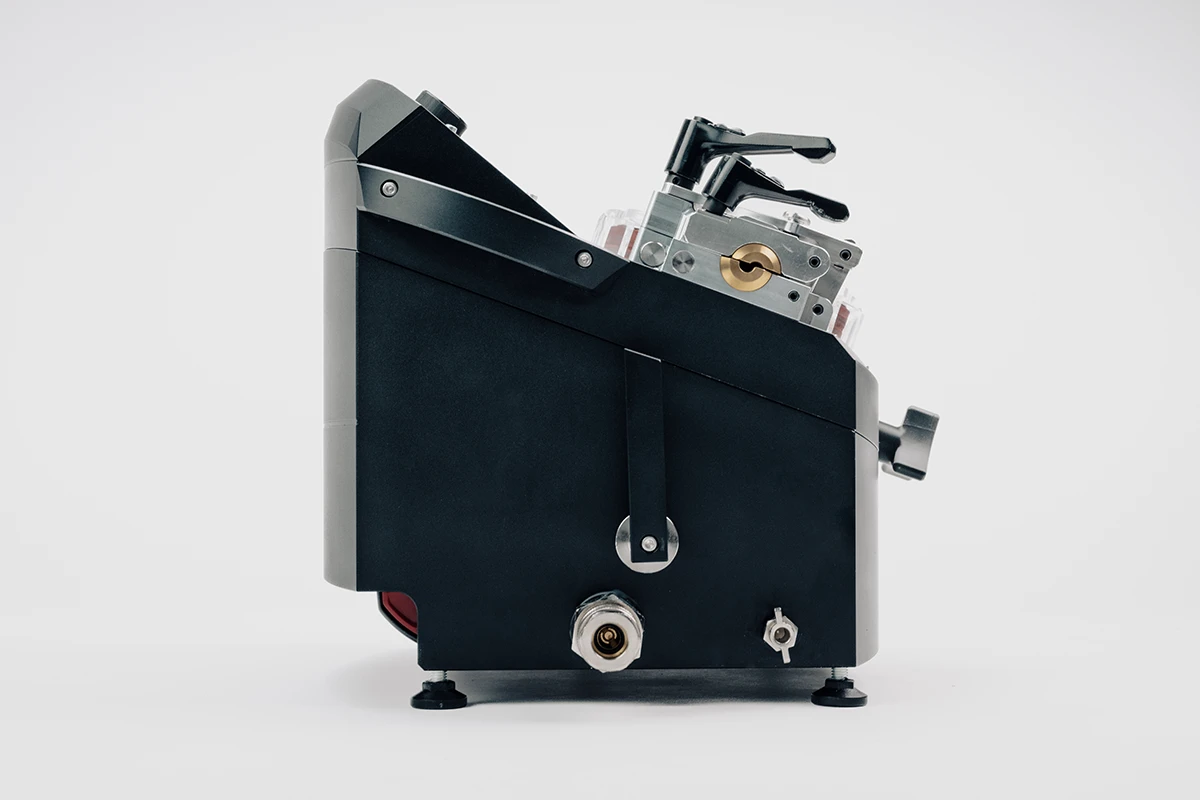

MONOBLOCK ALUMINIUM CHASSIS
Precision air control knob

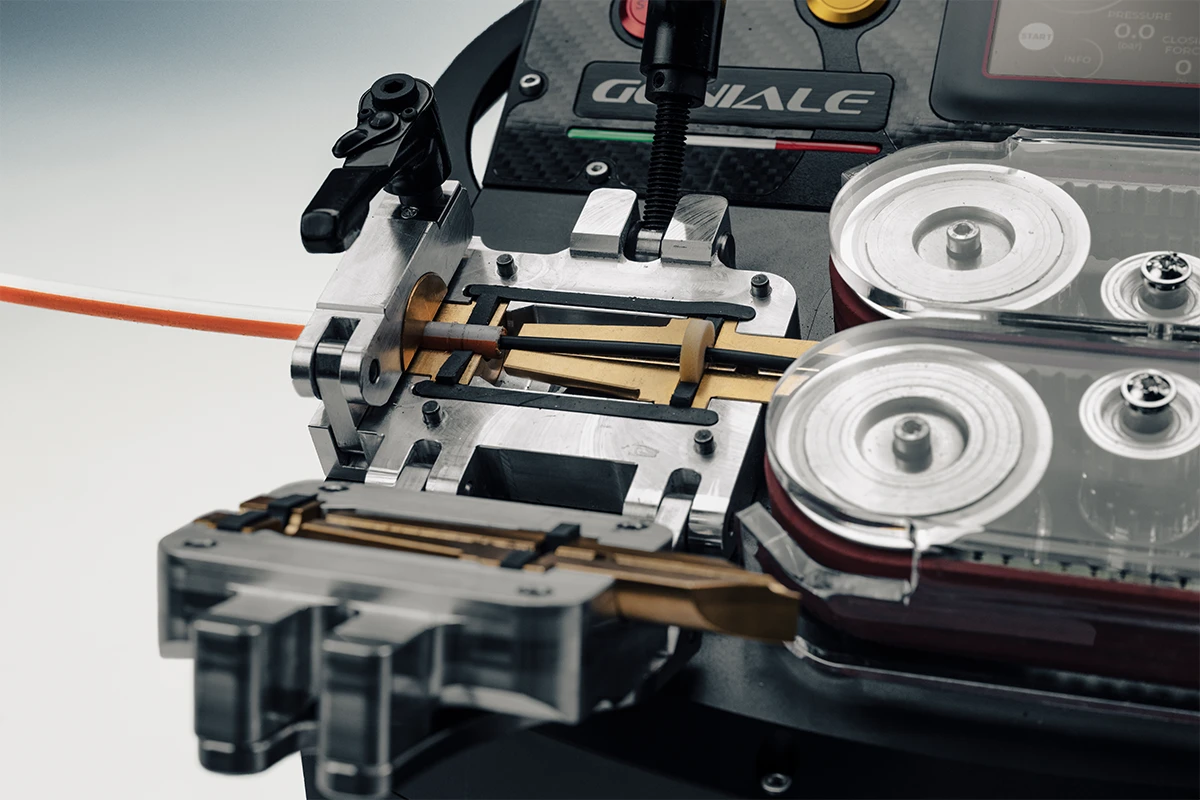

Quick ratchet locking system
